Category: 网络磁性元器件; 功率磁性元器件; 功率电感; 平面变压器; 车载产品

Sub-Category: 离散型网络变压器; RJ45集成式ICM模组

Application-Lan: 全部; X'FMR/CMC; X'FMR/CMC; X'FMR; X'FMR/CMC Single; X'FMR/CMC SMD2411MG; X'FMR/CMC

Number Of Ports: 全部; Dual; Quad; Single; Triple

Speed: 全部; 10/100Base-TX; 100/1000Base-T; 10GBase-T

Package: 全部; DIP; SMD

Package Length (mm): 全部; 10.4; 12.8; 13.97; 15.1; 15.5; 16.6; 18; 20.9; 25.4; 27.75; 28; 28.1; 28.3; 32.7; 34.3

Package Width (mm): 全部; 10.16; 10.2; 11.35; 12; 12.2; 12.7; 15.11; 18.7; 28.9; 6.8; 7.1; 7.3; 7.5; 8.5; 9.6

Package Height (mm): 全部; 12; 15; 16.8; 2.1; 4; 6; 6.25; 6.6; 6.8; 7.2; 7.3; 7.5; 8.5; 8.65

Temperature (℃): 全部; -40~85℃

PoE Rating: 全部; -40~85℃ NON-PoE; NON-PoE; PoE-at

Image	Part Number	Application-Lan	Number Of Ports	Speed	Package	Package Length (mm)	Package Width (mm)	Package Height (mm)	Temperature (℃)	PoE Rating	Files
	DIP7201-AG	X'FMR/CMC	Quad	100/1000Base-T	DIP	34.3	18.7	15	-40~85℃	NON-PoE	Download
	DIP4801-AG	X'FMR/CMC	Dual	100/1000Base-T	DIP	28	12	12	-40~85℃	NON-PoE	Download
	DIP2001-AG	X'FMR/CMC	Dual	10/100Base-TX	DIP	25.4	10.16	8.5	-40~85℃	NON-PoE	Download
	DIP1604AG	X'FMR/CMC	Single	10/100Base-TX	DIP	20.9	10.2	7.3	-40~85℃	NON-PoE	Download
	DIP1201G	X'FMR/CMC	Single	10/100Base-TX	DIP	12.8	7.5	6.25	-40~85℃	NON-PoE	Download
	SMD5001G	X'FMR/CMC	Dual	100/1000Base-T	SMD	27.75	7.3	8.65	-40~85℃	NON-PoE	Download

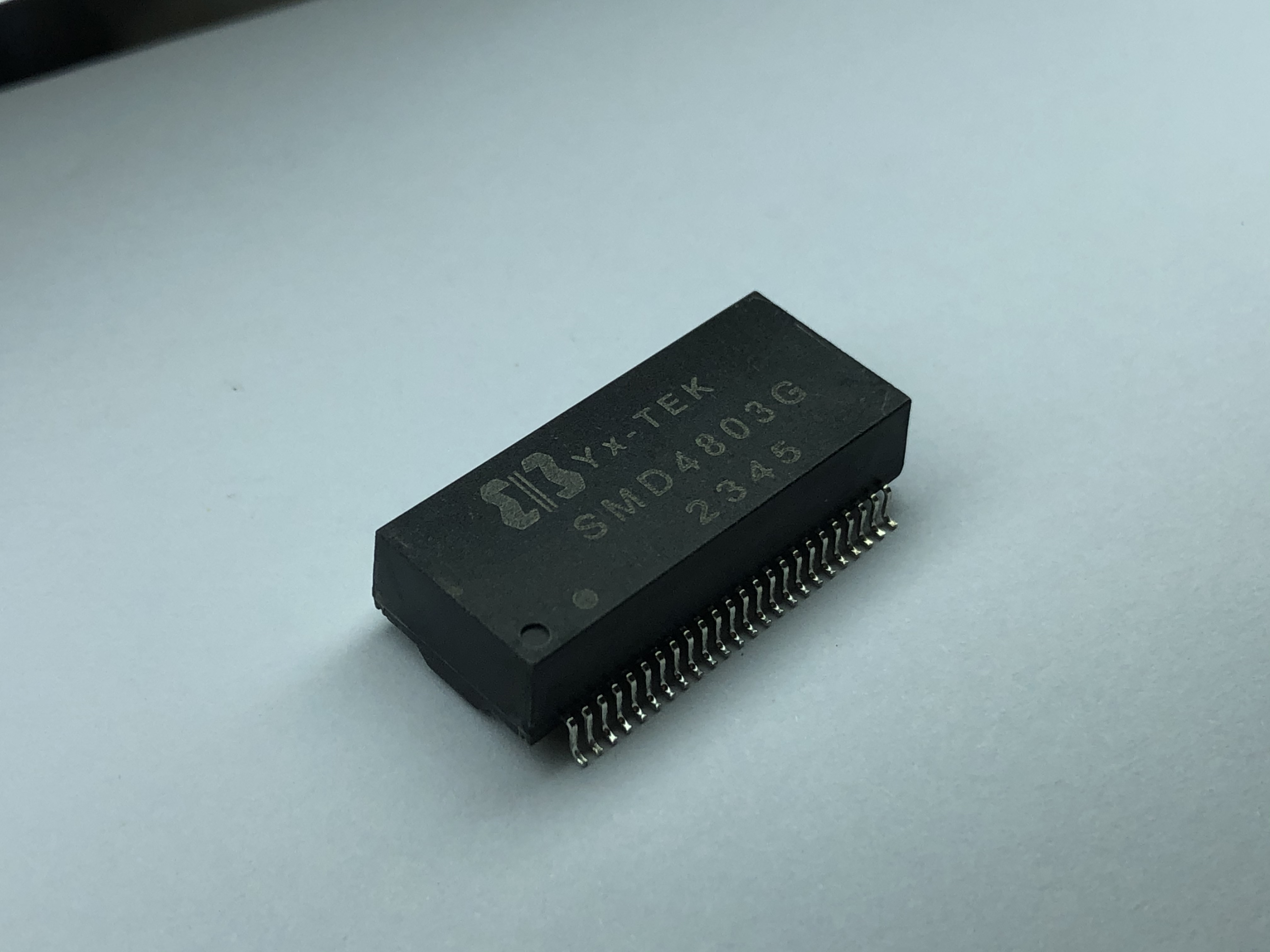

	SMD4803G	X'FMR/CMC	Dual	100/1000Base-T	SMD	28.3	12.7	7.5	-40~85℃	NON-PoE	Download

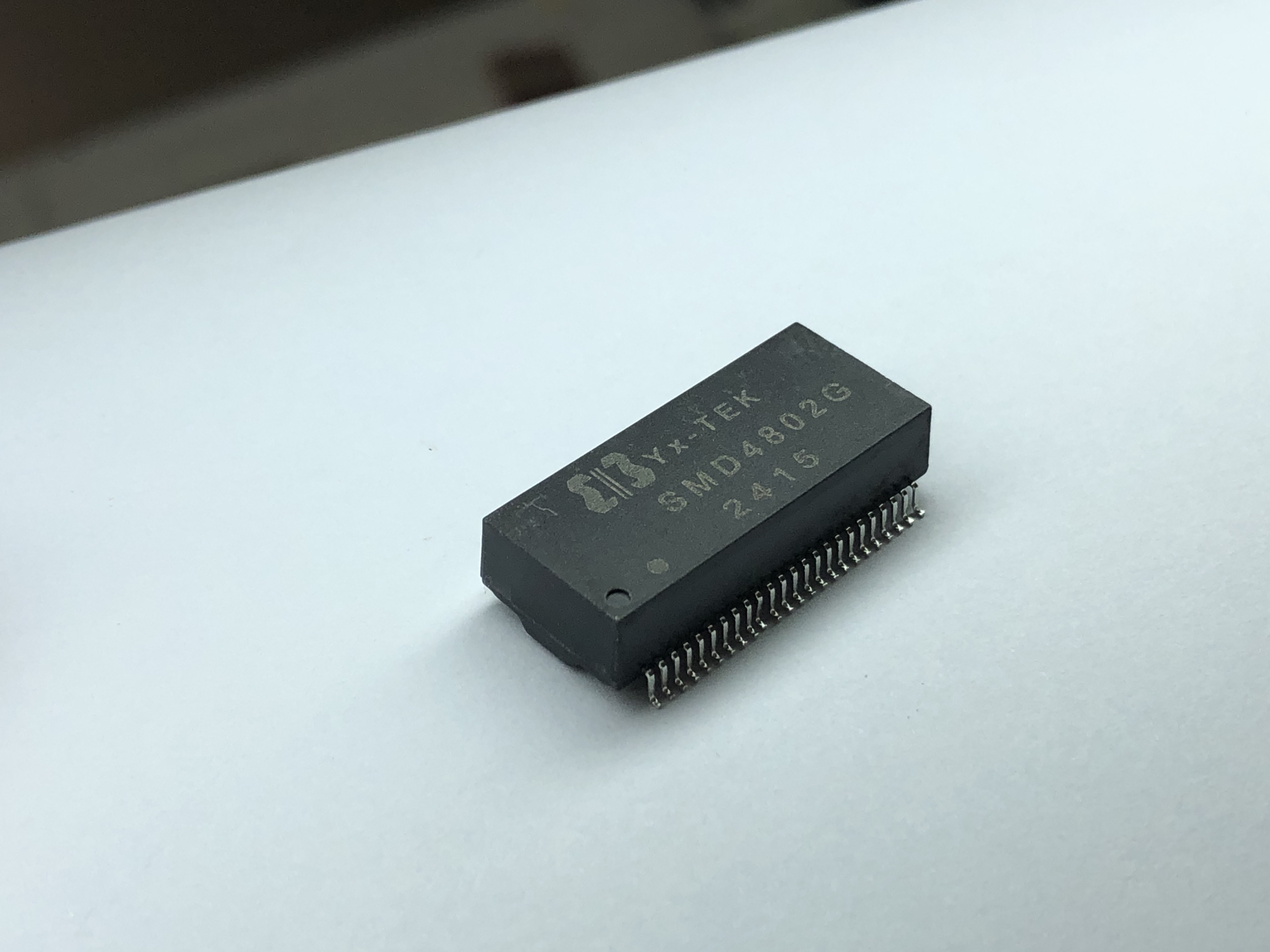

	SMD4802G	X'FMR/CMC	Dual	100/1000Base-T	SMD	28.3	12.7	7.5	-40~85℃	NON-PoE	Download

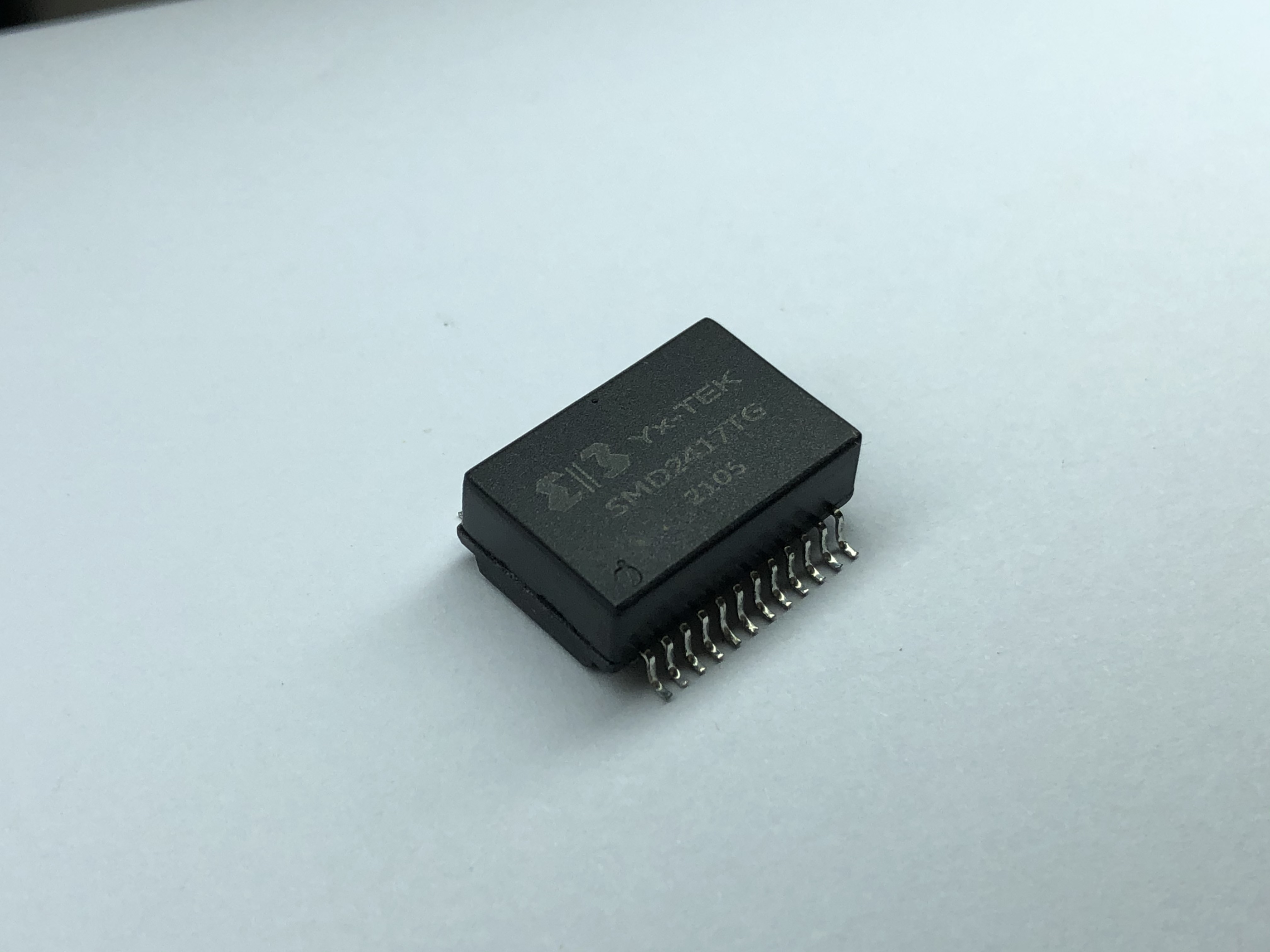

	SMD2417G	X'FMR/CMC	Single	100/1000Base-T	SMD	18	12.2	6.8	-40~85℃	PoE-at	Download

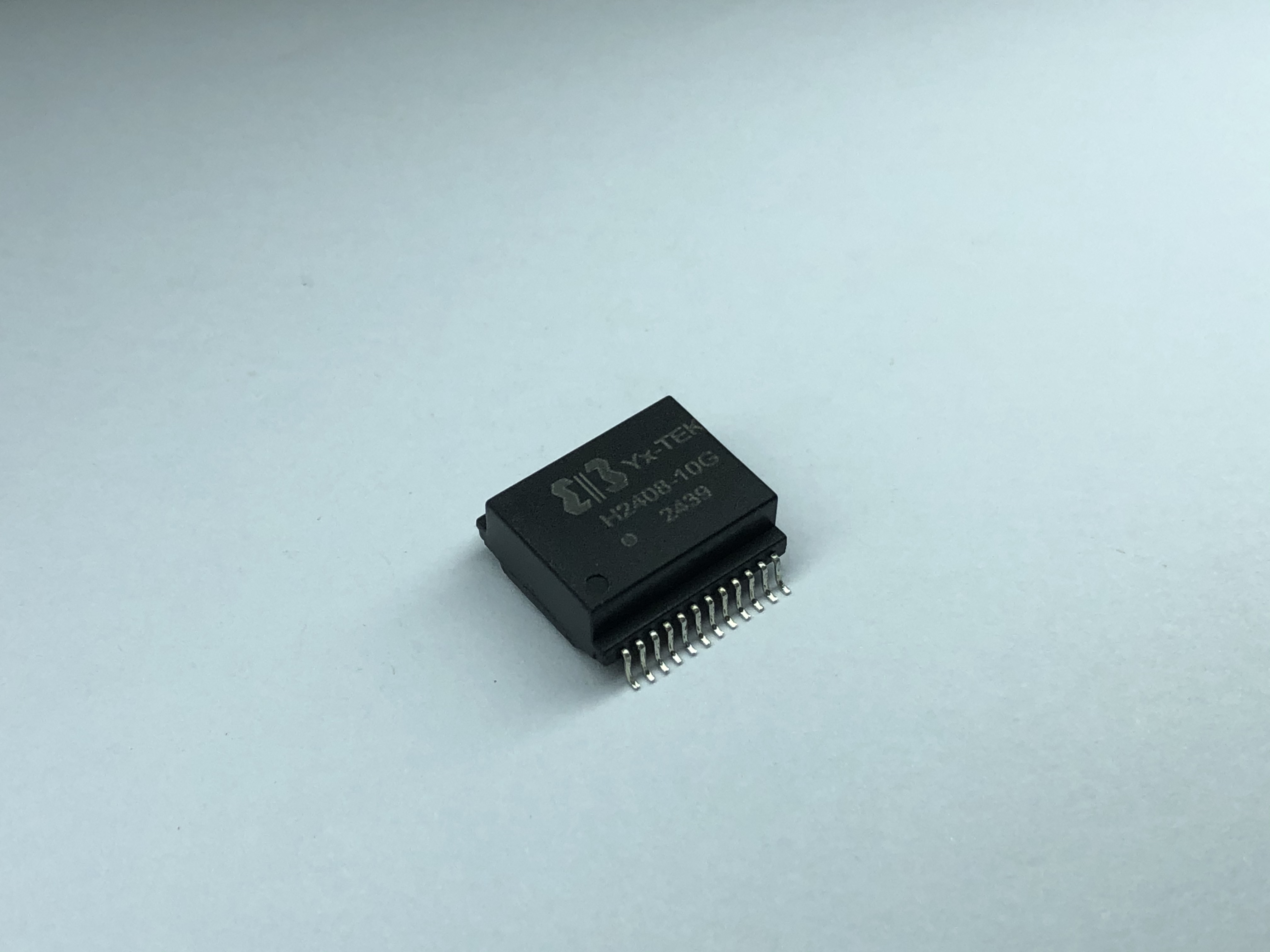

	SMD2408HG	X'FMR/CMC	Single	10GBase-T	SMD	13.97	15.11	6.6	-40~85℃	NON-PoE	Download
