Category: Network Magnetics; Power Magnetics; Power Inductors; Planar Transformers; Automotive Products

Sub-Category: Discrete LAN Transformers; RJ45 Integrated ICM Modules

Application-Lan: All; X'FMR; X'FMR/CMC; XFM/CMC

Number Of Ports: All; Dual; Quad; Single; Triple

Speed: All; 10/100Base-TX; 10/100M Base-T; 100/1000Base-T; 1000M Base-T; 10GBase-T; 2.5G Base-T

Package: All; DIP; SMD

Package Length (mm): All; 10.4; 12.3; 12.8; 13.97; 15.10; 15.5; 16.6; 18; 20.9; 21; 25.4; 27.75; 27.8; 28; 28.1; 28.3; 32.7; 34.3

Package Width (mm): All; 10.16; 10.2; 11.35; 12; 12.2; 12.5; 12.7; 15.11; 18.7; 28.9; 6.8; 7.10; 7.3; 7.5; 8.5; 9.5; 9.6

Package Height (mm): All; 12; 15; 16.8; 2.1; 4.00MAX; 4.0Max; 5.05; 5.75; 6.25; 6.6; 6.8; 7.2; 7.3; 7.5; 7.5MAX; 8.5; 8.65

Temperature (℃): All; -40 to 85; -40~85℃; -40℃ to 85℃

PoE Rating: All; NON-PoE; POE; PoE-af; PoE-at

Image	Part Number	Application-Lan	Number Of Ports	Speed	Package	Package Length (mm)	Package Width (mm)	Package Height (mm)	Temperature (℃)	PoE Rating	Files
	TC-X-07E	X'FMR	Single	10/100Base-TX	SMD	10.4	11.35	7.2	-40~85℃	NON-PoE	Download
	DIP2401AG	X'FMR/CMC	Single	100/1000Base-T	DIP	15.5	12	12	-40~85℃	NON-PoE	Download
	DIP1604AG	X'FMR/CMC	Single	10/100Base-TX	DIP	20.9	10.2	7.3	-40~85℃	NON-PoE	Download
	DIP1201G	X'FMR/CMC	Single	10/100Base-TX	DIP	12.8	7.5	6.25	-40~85℃	NON-PoE	Download

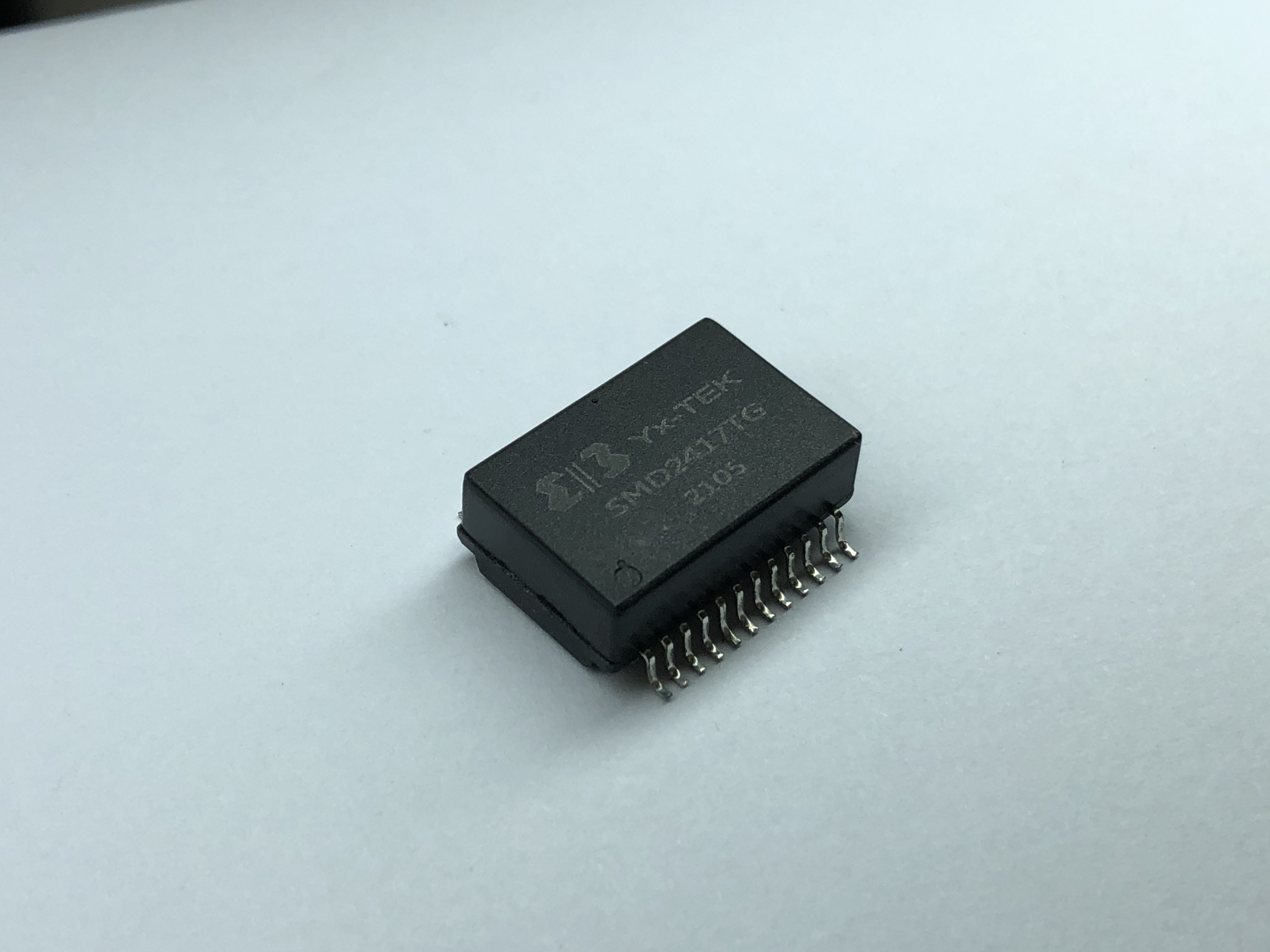

	SMD2417G	X'FMR/CMC	Single	100/1000Base-T	SMD	18	12.2	6.8	-40~85℃	PoE-at	Download

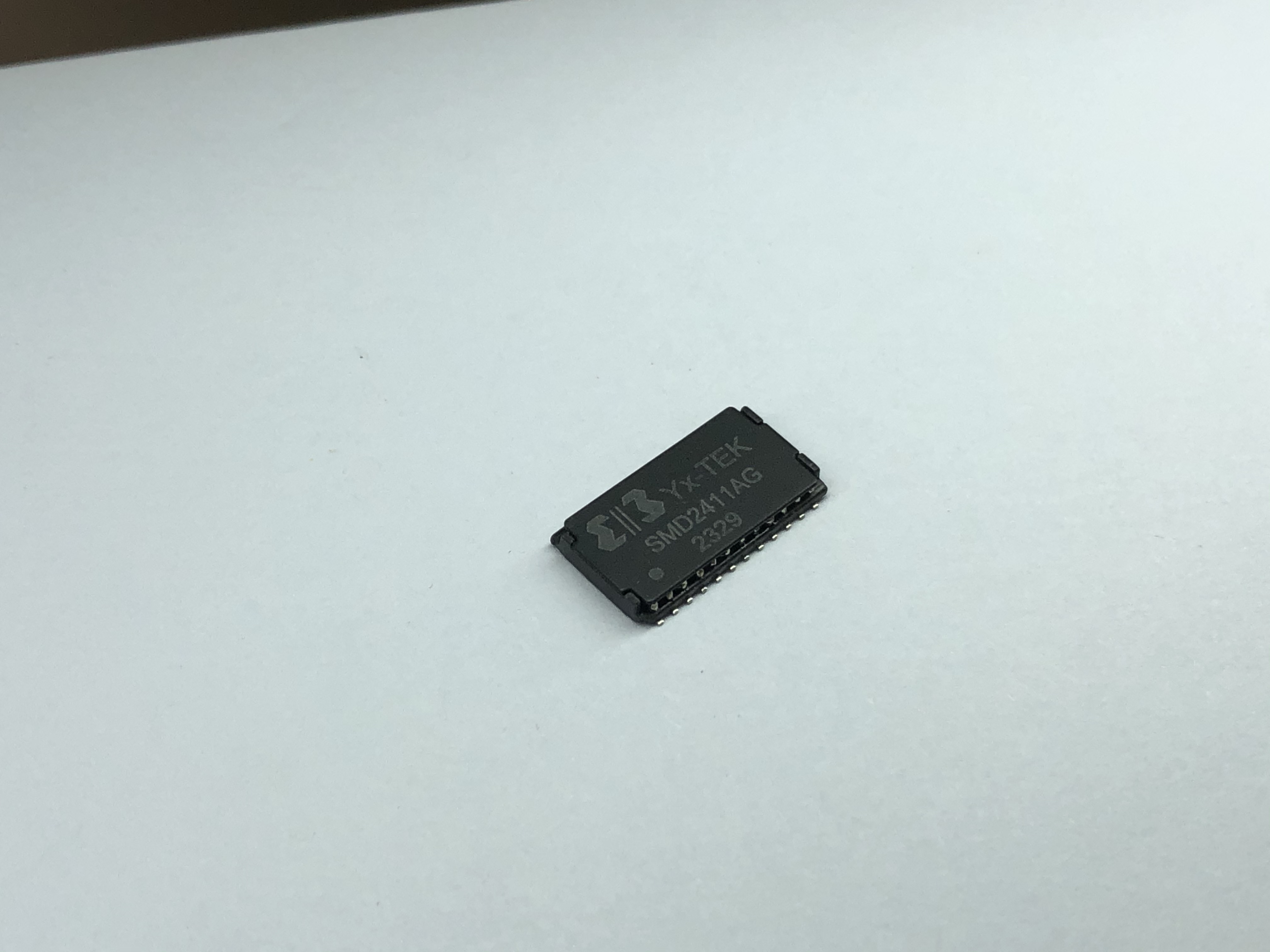

	SMD2411MG	X'FMR/CMC	Single	10/100Base-TX	SMD	16.6	9.6	2.1	-40~85℃	NON-PoE	Download
	SMD2408HG	X'FMR/CMC	Single	10GBase-T	SMD	13.97	15.11	6.6		POE	Download

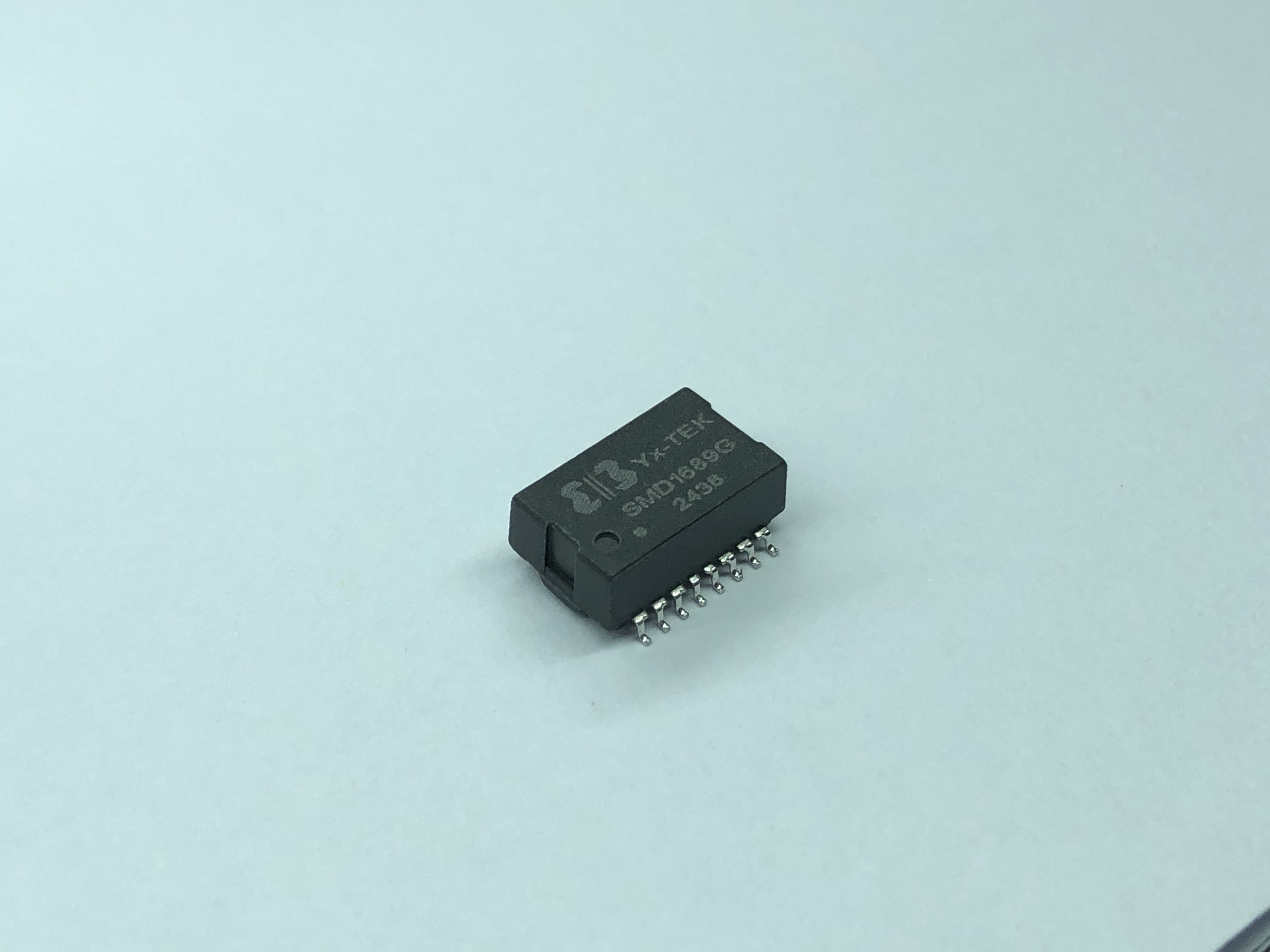

	SMD1689PG	X'FMR/CMC	Single	10/100Base-TX	SMD	12.3	9.5	5.05	-40~85℃	NON-PoE	Download

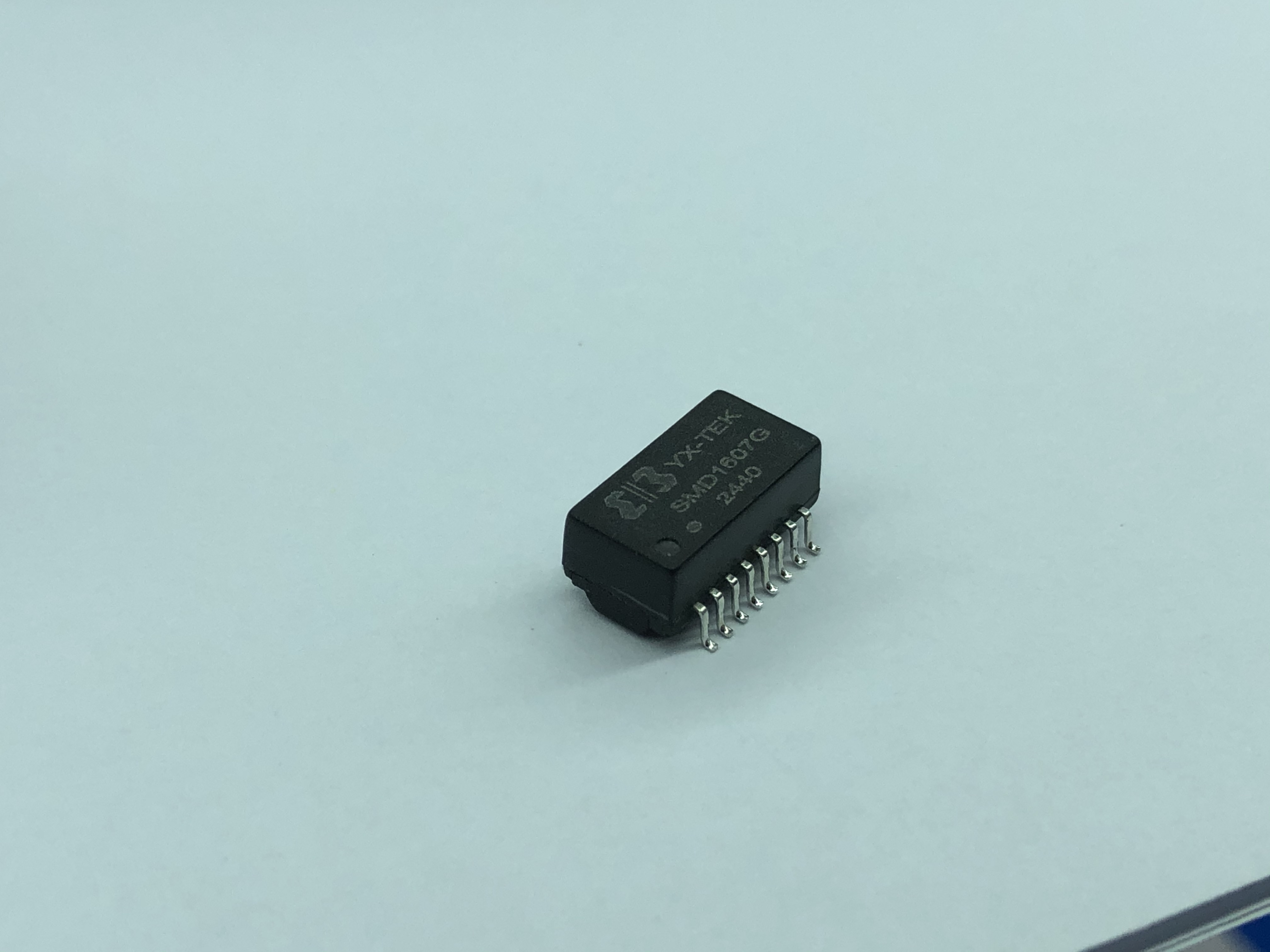

	SMD1607G	XFM/CMC	Single	10/100M Base-T	SMD	12.8	6.8	5.75	-40~85℃	NON-PoE	Download

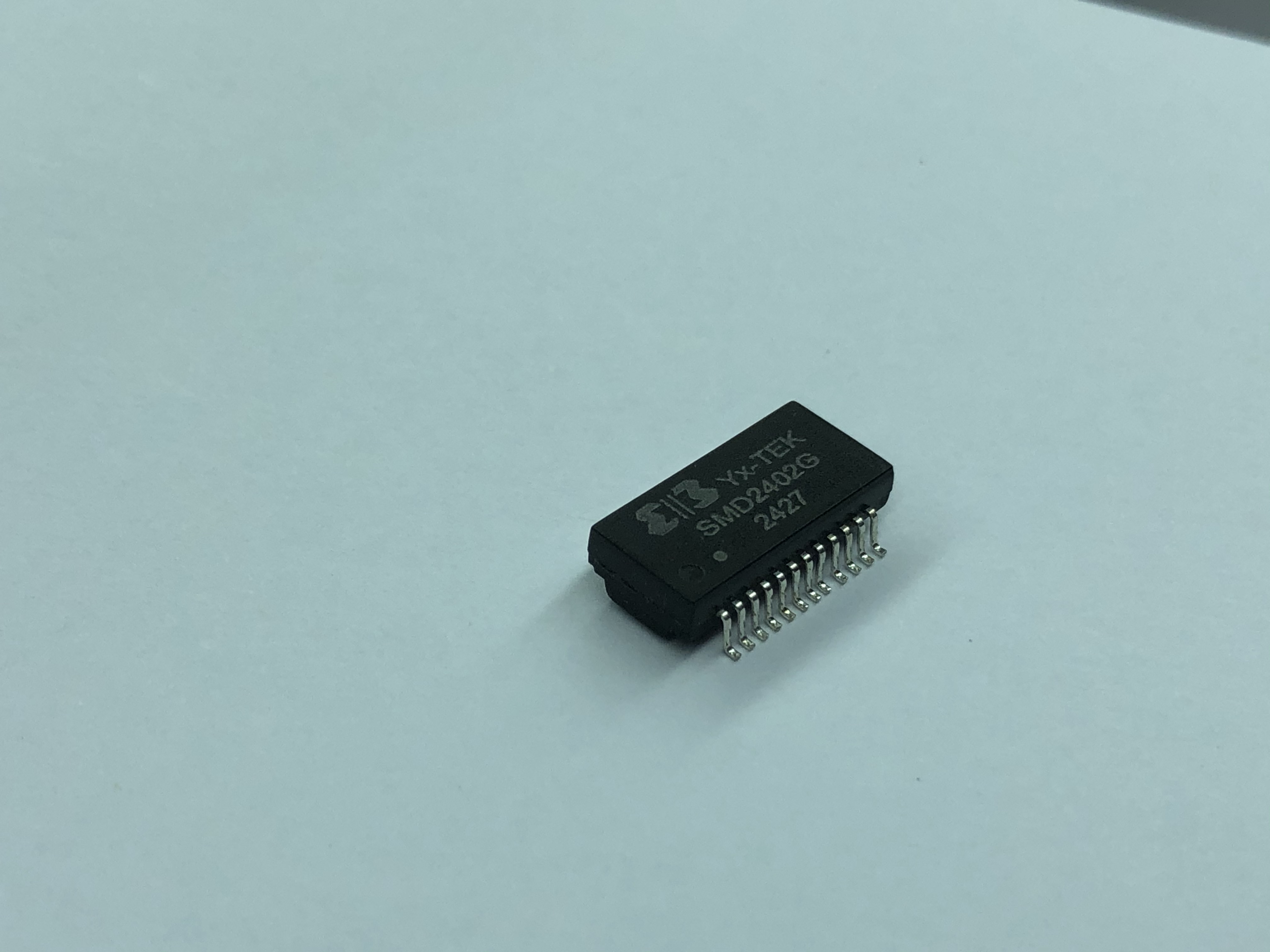

	SMD2402G	X'FMR/CMC	Single	1000M Base-T	SMD	15.10	7.10	4.0Max	-40~85℃	PoE-af	Download
