YX-TEK is currently developing the next generation of network magnetic components to meet the evolving demands of future markets and applications. Our aim is to achieve fully automated manufacturing processes to support a wide range of scenarios. We offer a comprehensive range of network products, including LAN transformers and RJ45 integrated ICM module network transformers. These products are manufactured using our proprietary LAN transformer automation intelligent manufacturing system, ensuring high-quality and competitive solutions for the market and our customers.

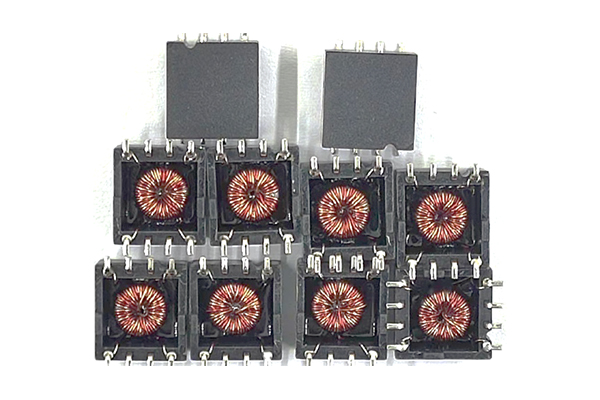

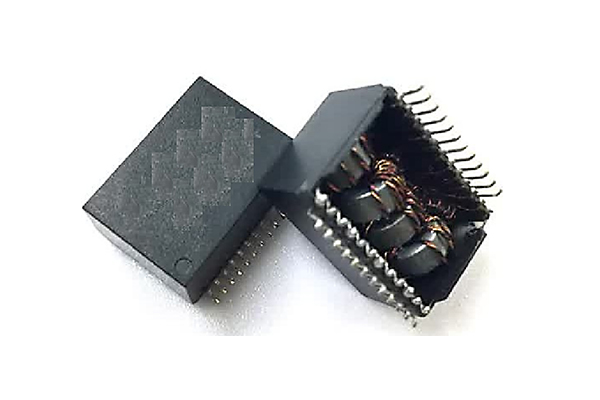

YX-TEK specializes in the development and manufacturing of LAN transformers that meet the requirements of EU RoHS & REACH regulations and are 100% compatible with PHY IC chips. Our LAN transformers are designed to adhere to the relevant standards of IEEE 802.3 wired networks.
We offer a range of options to suit different needs, including SMD/DIP packaging, single/dual/quad-port configurations, and a choice of specifications such as PoE/POE+ (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) and industrial-grade wide temperature range. All our products undergo extensive testing, including Hi-Pot and DC parameter testing, as well as compliance with IEEE and safety standards. This ensures that our LAN transformers significantly reduce design validation time and expedite product time to market for our valued customers.
YX-TEK’s LAN transformers find widespread application in various industries, including network communications, consumer electronics, industrial, IoT, and transportation. Our transformers are used in a diverse range of equipment, including 5G small cells, 5G CPEs, 5G IADs, passive optical fiber networks (OLT, ONU, ONT), optical modems, WiFi-6 routers, traditional switches/SDN switches, routers, set-top boxes, servers, network storage servers, computer motherboards, laptops, desktop PCs, industrial computers (IPCs), POS machines, printers, digital appliances, cable modems, smart/Android TVs, VoIP phones, and more.
Specifications:
• IEEE 802.3 Compliant to 10G
• HDBaseT Compliant
• High Isolation up to 6kV
• Higher Reliability (Carrier Class & AEC-Q200)
• Single, Dual, Quad Packages
• SMD & DIP Options
• Extended Temperature -40°C to +85°C
• PoE++ Capable
YX-TEK offers a diverse range of over 60 RJ45 integrated LAN transformer products, supporting various usage scenarios such as 11/1N/21/2N/N*N configurations. With a maximum transmission speed of 10Gbps and a power supply capability of 120W POE, our products deliver outstanding performance. We also provide custom product development to meet specific requirements, leveraging our 15+ years of experience in metal and plastic mold development. Our collaborative approach ensures seamless integration of product appearance and functionality designs, making us a trusted partner in the industry.
Specifications:
• Available For 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T, Speed
• Top And Side-Entry PCB Mount Options Available
• Multiple Package Options Available, 1×1, 1xN, 2xN, RJ45/USB, Low Profile, Offset & More
• PoE++ Capable Up To 150W
• Operating Temp. from 0 to 70°C /-40 to 85°C
• Higher Isolation (TVSS, Surge)
• RoHS Compliant
Power transformers are essential components that provide voltage conversion and signal isolation functionalities. YX-TEK offers a wide range of products and customized solutions to support power ranges from mW to 10kW, catering to various topologies including flyback, forward, push-pull, resonant, LLC, and phase-shift full bridge. Operating at typical frequencies between 80-500kHz, YX-TEK's products find applications in power supplies, chargers, adapters, and 3C consumer electronics power modules.
The power transformers engineered and produced by YX-TEK play a vital role in voltage conversion, current transformation, characteristic impedance conversion, and protection. They find extensive applications in the consumer electronics market, serving various needs such as mobile phone chargers, power adapters, server power supplies, computers, printers, monitors, projectors, and more.
The power transformers engineered and produced by YX-TEK play a vital role in voltage conversion, current transformation, characteristic impedance conversion, and protection. They find extensive applications in the consumer electronics market, serving various needs such as mobile phone chargers, power adapters, server power supplies, computers, printers, monitors, projectors, and more.
The power transformers engineered and produced by YX-TEK play a vital role in voltage conversion, current transformation, characteristic impedance conversion, and protection. They find extensive applications in the consumer electronics market, serving various needs such as mobile phone chargers, power adapters, server power supplies, computers, printers, monitors, projectors, and more.
The power transformers engineered and produced by YX-TEK play a vital role in voltage conversion, current transformation, characteristic impedance conversion, and protection. They find extensive applications in the consumer electronics market, serving various needs such as mobile phone chargers, power adapters, server power supplies, computers, printers, monitors, projectors, and more.
Inductors are versatile components with various functions, including differential mode filtering, output chokes, and energy storage in power supply topologies like Buck, Boost, SEPIC, and Cuk. Key parameters of inductors include rated current (to prevent overheating), saturation current (to avoid saturation under peak current), and attention to losses caused by AC ripple current and frequency during operation. These factors are critical for ensuring reliable and efficient performance across different applications.
YX-TEK's flat wire coil inductors are available in various form factors. By utilizing low-loss core materials, these inductors achieve high efficiency, minimize AC losses, and eliminate thermal aging. The use of flat wire technology reduces manufacturing costs while maintaining low DCR (Direct Current Resistance) and a small footprint. Our products are designed and manufactured in compliance with the IATF16949 management system, ensuring reliability that meets AEC-Q200 standard certification. They are extensively used in output and energy storage choke applications for various power supply topologies, including Point of Load (POL) converters, DC-DC converters, high-current switching mode power supplies, inverters in photovoltaic systems, and automotive applications.
YX-TEK's developed and manufactured coupling inductors feature exceptionally high voltage withstand capability and offer stability and reliability. They are suitable for applications in the field of smart Internet of Things (IoT), such as smart meters, smart access control systems, and more.
Specification:
• Flat wire Helical winding To Achieve Compact Size
• Ferrite Core To Minimize AC Loss
• Easily Customized
• AEC-Q200 Qualified
• Larger Terminations For Lower DCR And Stronger Solder Joint
YX-TEK's inductive coil products are used for signal transmission (Ethernet, Flex Ray, CAN/CAN FD) and EMC filtering in power lines.
Specifications:
• Meets IEEE 802.3 Single Twisted Pair Standards
• Meets AEC-Q200 Requirement
• PPAP d0cumentation Support
• Tested with Leading PHY Partners
• Operating Temperature: – 40°C to +125°C
• 100Base-T1, 1000Base-T1 & PoDL Products
• IATF16949 Capable
Planar Transformers
More+
YX-TEK's planar transformers are high-frequency power transformers that utilize PCB wiring technology to achieve flat windings. They offer high power density, good consistency, and excellent thermal performance. As a cost-saving embedded technology, they are becoming increasingly popular. YX-TEK's planar transformers include multi-layer PCB type, copper foil type, and various winding combinations, covering a wide range of power applications such as DC/DC, AC/DC, and more. Customization options are also available to provide tailored solutions and products for specific forms and applications.
YX-TEK offers a variety of planar transformers, including multi-layer PCB type, copper foil type, and various winding configurations. They are designed for different power supply applications such as DC/DC and AC/DC. Additionally, YX-TEK provides customized solutions to meet specific customer needs.
Specifications:
• Multilayer PCB For Transformer Winding
• High Consistency And Efficiency
• Low Profile,High Reliability
• Winding Structure : PCB Up To 24 Layers
• Typical Efficiency : 95%～99%
• Typical Topology : Forward/Flyback/Buck/Full Bridge/Half Bridge
YX-TEK offers a variety of planar transformers, including multi-layer PCB type, copper foil type, and various winding configurations. They are designed for different power supply applications such as DC/DC and AC/DC. Additionally, YX-TEK provides customized solutions to meet specific customer needs.
Specifications:
• Multilayer PCB For Transformer Winding
• High Consistency And Efficiency
• Low Profile,High Reliability
• Winding Structure : PCB Up To 24 Layers
• Typical Efficiency : 95%～99%
• Typical Topology : Forward/Flyback/Buck/Full Bridge/Half Bridge
YX-TEK offers a variety of planar transformers, including multi-layer PCB type, copper foil type, and various winding configurations. They are designed for different power supply applications such as DC/DC and AC/DC. Additionally, YX-TEK provides customized solutions to meet specific customer needs.
Specifications:
• Multilayer PCB For Transformer Winding
• High Consistency And Efficiency
• Low Profile,High Reliability
• Winding Structure : PCB Up To 24 Layers
• Typical Efficiency : 95%～99%
• Typical Topology : Forward/Flyback/Buck/Full Bridge/Half Bridge
Automotive Products
More+
As the automotive industry rapidly moves towards electrification, connectivity, and intelligence, there is a growing need for high-efficiency, high-reliability, and compact magnetic devices or components. Whether your requirements are for high-power conversion in OBCs, high-isolation signals and power in BMS, wired or wireless solutions for ADAS, or other in-vehicle/external and charging solutions, as well as new energy conversion and storage, YX-TEK is committed to providing you with optimal solutions or products.
YX-TEK provides 100/1000/2.5/5/10GBase-T Ethernet magnetic components for automotive communication and battery management system applications. Our products are designed to operate in a wide temperature range from -40°C to +125°C, offering high reliability, mass production capability, long-term manufacturing support, and compliance with AEC-Q200 requirements.
Specifications:
• Support Major PHY Manufacturers
• Meets AEC-Q200 Requirements
• Design And Manufacture IATF-16949 Certified
• Fully Automated Production
• PPAP Level 3 Capable
• Operating Temp. From -40°C to +125°C
YX-TEK provides 100/1000/2.5/5/10GBase-T Ethernet magnetic components for automotive communication and battery management system applications. Our products are designed to operate in a wide temperature range from -40°C to +125°C, offering high reliability, mass production capability, long-term manufacturing support, and compliance with AEC-Q200 requirements.
Specifications:
• Support Major PHY Manufacturers
• Meets AEC-Q200 Requirements
• Design And Manufacture IATF-16949 Certified
• Fully Automated Production
• PPAP Level 3 Capable
• Operating Temp. From -40°C to +125°C
